52PCE Heat Shrink Tube Set / Item No: S0252KC

  • S0252KC
  • S0252KC
Heat Shrink Series

52PCE Heat Shrink Tube Set / Item No: S0252KC

Heat shrink tubing, also known as heat shrink, is a shrinkable tube that shrinks radially when exposed to heat. Produced using a two-step process, heat shrink is available in a wide range of materials to suit almost any application. Heat shrink tubing has many useful applications, including to provide electrical insulation to wires, connections, joints, terminals, and splices, as well as bundling loose items such as wires and as a protective covering.

Product Introduction

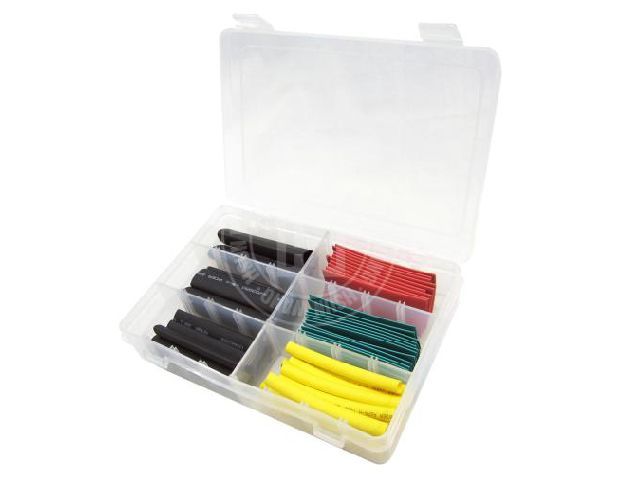

Item No:S0252KC    52PCE Heat Shrink Tube Set

  • Heat Shrink Tube-Green
  • Heat Shrink Tube-Red
  • Heat Shrink Tube-Yellow
  • Dual Wall Heat Shrink Tube-Black



Heat shrink tubing, also known as heat shrink, is a shrinkable tube that shrinks radially when exposed to heat. Produced using a two-step process, heat shrink is available in a wide range of materials to suit almost any application. Heat shrink tubing has many useful applications, including to provide electrical insulation to wires, connections, joints, terminals, and splices, as well as bundling loose items such as wires and as a protective covering.



Heat Shrink Tube:

Material: Polyolefin

  1. Operating Temperature: -55°C~ +125°C
  2. Shrink Temperature: Start at 70°C ; Shrunk totally at 110°C
  3. Shrink Ratio: 2:1
  4. Maximum Electrical Rating: 600 Volts



Dual Wall Heat Shrink Tube:

Material: Polyolefin

  1. Operating Temperature: -45°C~ +125°C
  2. Shrink Temperature: Start at 70°C ; Shrunk totally at 125°C
  3. Shrink Ratio: 3:1
  4. Maximum Electrical Rating: 600 Volts
  5. Waterproof

Features:

  1. Protection and insulation of components and wires.
  2. Adhesive Lined inner wall seals and protects against moisture ingress preventing corrosion.
  3. Quickly & simply shrink by Heat gun.
  4. Waterproof.



More LiCrim Crimper information : Please Press the button "Download" to get it.

  • Made of Polyolefin, Shrinkage Ratio:2:1 (will shrink to 1/2 its supplied diameter)
    Suitable for electrical insulation, wire bundling, colour coding, mechanical protection, wire/cable joints and daily repairs etc
  • Great variety of top pro-quality heat shrink tubing.Heat activated adhesive lining provides impermeable seal to salt water and other liquids.
    Includes handy plastic container for easy organization and storage.
    3:1 heat shrink ratio. Will shrink up to 1/3 of original diameter.
