70PCE Heat Shrink Butt Tube Set / Item No: S1170KC

  • S1170KC
  • S1170KC
Heat Shrink Series

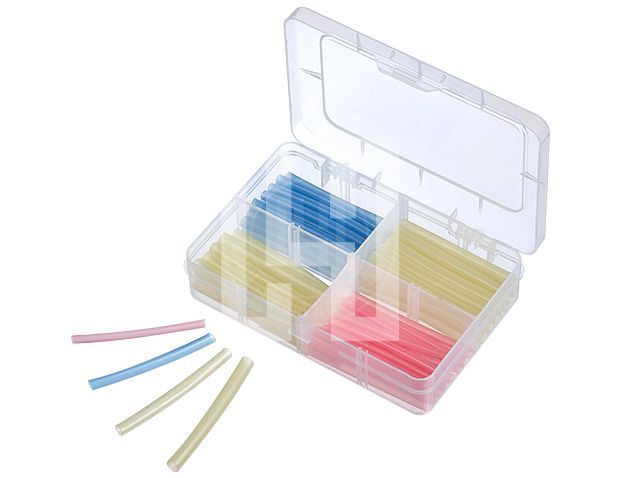

70PCE Heat Shrink Butt Tube Set / Item No: S1170KC

Item No: S1170KC 4X Heat Shrink Butt Tube Set
Heat shrink tubing, also known as heat shrink, is a shrinkable tube that shrinks radially when exposed to heat. Produced using a two-step process, heat shrink is available in a wide range of materials to suit almost any application. Heat shrink tubing has many useful applications, including to provide electrical insulation to wires, connections, joints, terminals, and splices, as well as bundling loose items such as wires and as a protective covering.

Product Introduction

Item No: S1170KC 70PCE Heat Shrink Butt Tube Set

Shrink ratio : 4:1
Use high quality cross-link polyolefin material. The hot melt adhesive compound will be adhered to inner layer for the
purpose of applying to the outer usage of heat shrink terminal tube. It not only provides the electric wire sealed, water resistant, and insulation, but also widely used to the electric wire connection of waterproof, corrosion resistant, compression resistant, and wear-resisting and so on. Easier to install.

Feature :
1. With waterproof and insulation material.
2. Reinforced tensile strength

Temperature Range:
1. Operating Temperature:-45℃~125℃;
2. Shrink Temperature:125℃;

Specification- The Available sizes fromΦ4.5 to Φ8mm, available to produce upon special requirement.

Heating Tools: Using ove or heating gun to let it shrink.

Function - Insulation/ Colors / Wear Resistance / Water proof / Anticorrosion / Temperature



More LiCrim Crimper information : Please Press the button "Download" to get it.


Packing List:  10/40/CTN/8/9/KGS/1.8'
                               PP Box
PP box Size:  17.5 x 13 x 4 cm
Unit Weight:  193g



For more information please contact us.
