165PCE Heat Shrink Terminal & Closed End Connector Kit / Item No: E01165HC

Terminals Kit Series

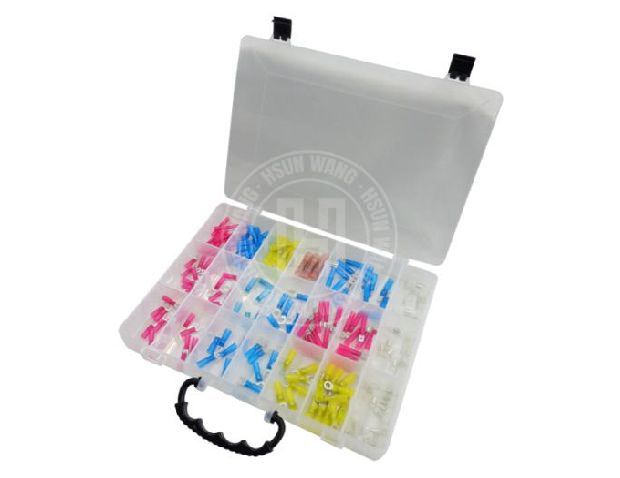

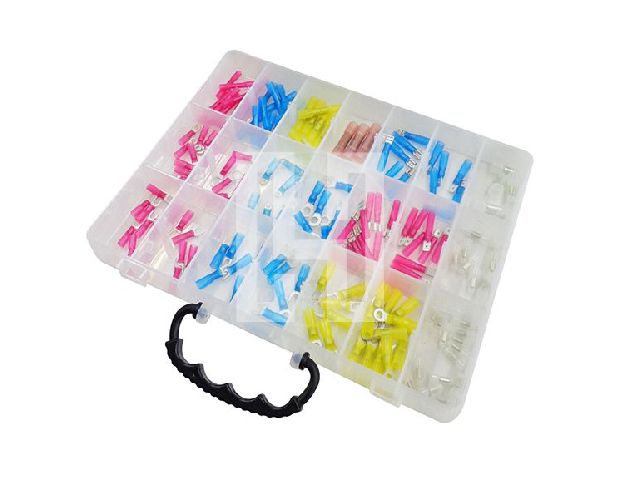

165PCE Heat Shrink Terminal & Closed End Connector Kit / Item No: E01165HC

。A VARIETY OF CONNECTOR TYPES WITHOUT BREAKING THE BANK - Rings, forks, male/female spade, and butt connectors.
。EASY APPLICATION - Just make a crimp and apply heat. Secure and durable connections can be made in seconds.
。PREMIUM COMPONENTS - Tinned copper barrels and dual wall heat shrink tubing with adhesive inside.
。STRONG CRIMPS - Thick terminal barrels ensure your wire will never slip out of these connectors.

Product Introduction

Item No: E01165HC   165PCE Heat Shrink Terminal & Closed End Connector Kit

  • Heat Shrink Butt Connector
  • Heat Shrink Female Disconnector
  • Heat Shrink Male Disconnector
  • Heat Shrink Ring Terminal
  • Heat Shrink Spade Terminal
  • Closed End Connector



Heat Shrink Ring/Spade Terminal/Butt Connector:

Terminal Material: Copper

  1. Shrink Temperature: 150°C
  2. Operating Temperature: -10°C~ +105°C
  3. Shrink Ratio: 3:1
  4. Maximum Electrical Rating: 600 Volts
  5. Waterproof



Heat Shrink Male/Female Disconnector[Double Crimp Type]:

Terminal Material: Brass with Easy Entry Copper Sleeve on Barrel

  1. Shrink Temperature: 150°C
  2. Operating Temperature: -10°C~ +105°C
  3. Shrink Ratio: 3:1
  4. Maximum Electrical Rating: 300 Volts
  5. Waterproof




Packing List:  20/CTN/15.7/16.7/KGS/2.8'
                        PP Box
PP Box Size:  31 x 29 x 4 cm (Include Hanger)
Unit Weight:  786g



For more information please contact us.
