300PCE Auto Plug-In Fuse Set(Zinc) / Item No: F01300KA

  • F01300KA
  • F01300KA
Automotive Fuse Assortment Series

300PCE Auto Plug-In Fuse Set(Zinc) / Item No: F01300KA

A fuse is a plug-in for an electronic device that protects electrical equipment and circuits from overloading. In short, it controls the current and keeps it at the desired level in the circuit.

Product Introduction

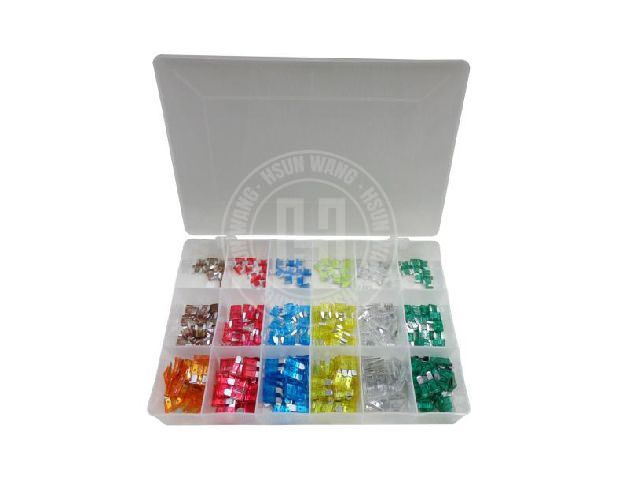

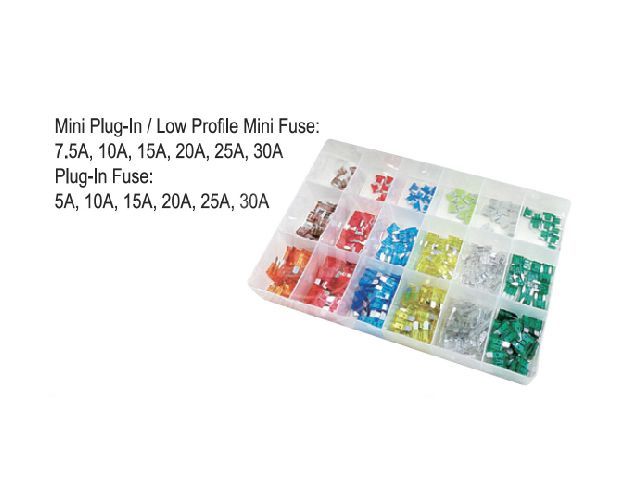

Item No: F01300KA  300PCE Auto Plug-In Fuse Set(Zinc)

  • Low Profile Mini Fuse-7.5A(Brown)
  • Low Profile Mini Fuse-10A(Red)
  • Low Profile Mini Fuse-15A(Blue)
  • Low Profile Mini Fuse-20A(Yellow)
  • Low Profile Mini Fuse-25A(Clear)
  • Low Profile Mini Fuse-30A(Green)
  • Mini Plug-In Fuse-7.5A(Brown)
  • Mini Plug-In Fuse-10A(Red)
  • Mini Plug-In Fuse-15A(Blue)
  • Mini Plug-In Fuse-20A(Yellow)
  • Mini Plug-In Fuse-25A(Clear)
  • Mini Plug-In Fuse-30A(Green)
  • Plug-In Fuse-5A(Tan)
  • Plug-In Fuse-10A(Red)
  • Plug-In Fuse-15A(Blue)
  • Plug-In Fuse-20A(Yellow)
  • Plug-In Fuse-25A(Clear)
  • Plug-In Fuse-30A(Green)



Fuses and Circuit Breakers

Fuses and circuit breakers protect circuits and appliances.



If a fault in an appliance causes excessive current to flow, a fuse opens the circuit. This protects wiring and equipment. The fuse contains a strand of zinc that melts easily. If the current through the fuse is too high, the zinc will melt and protect the wiring and equipment.



Low Profile Mini Fuse:

‧Voltage Rating: 32V

‧Body Material: PC

‧Material: Zinc Alloy

‧According to ISO 8820-9 standards.



Mini Plug-In Fuse:

‧Voltage Rating: 32V

‧Body Material: PC

‧Material: Zinc Alloy

‧According to SAE J2077 standards.



Plug-In Fuse:

‧Voltage Rating: 32V

‧Body Material: PC

‧Material: Zinc Alloy

‧According to SAE J1284 standards.





Packing List : 20/CTN/11/12/KGS/1.9'

                        PP Box & Label

PP Box Size : 27.5 X 18.5 X 4 cm

Unit Weight : 550 g
